SMSM

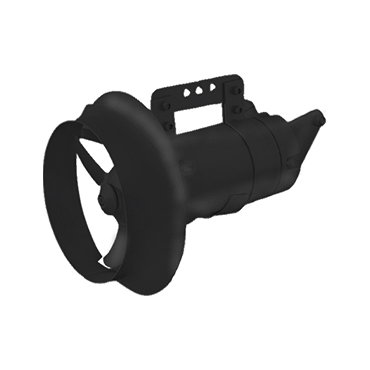

Agitator
Product use
· For agitation of anaerobic fermentation tank in sewage treatment plant
· For stirring for oxygen supply
· Respond to agitation demand from other industrial sites
Structure and Features
· Excellent mixing ability with horizontal and horizontal stirrer
· Simple structure with integrated shaft and impeller, guaranteed reliability
· Easy installation and lifting with sliding lifting device
· Various models including high spee
· Simple structure with integrated shaft and impeller, guaranteed reliability
· Easy installation and lifting with sliding lifting device
· Various models including high spee
Motor specifications
· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise)
· Output range: 2.2~37kW
· Service Factor: 1.15
· Winding temperature detection and seal leakage detection sensors are installed as standard
· Class F insulation (class B temperature rise)
· Output range: 2.2~37kW
· Service Factor: 1.15
· Winding temperature detection and seal leakage detection sensors are installed as standard
Standard specifications
| Format Model |
Output (KW) |
Rotation count (RPM) |
Maximum flow rate (M/S) |
Maximum treatment tank volume (㎥) | Maximum mixing range (m) |
Weight (kg) |
|---|---|---|---|---|---|---|
| SM0.75 T | 0.75 | 1750 | 0.5 | 50 | 6 | 65 |
| SM1.5 T | 1.5 | 100 | 12 | 70 | ||
| SM2.2 T | 2.2 | 150 | 15 | 100 | ||
| SM3.7 T | 3.7 | 200 | 20 | 110 | ||
| SM5.5 T | 5.5 | 300 | 30 | 130 | ||
| SM7.5 T | 7.5 | 500 | 35 | 145 | ||
| SM11 T | 11 | 1165 | 600 | 40 | 280 | |
| SM15 T | 15 | 875 | 800 | 45 | 300 |
