SMGA

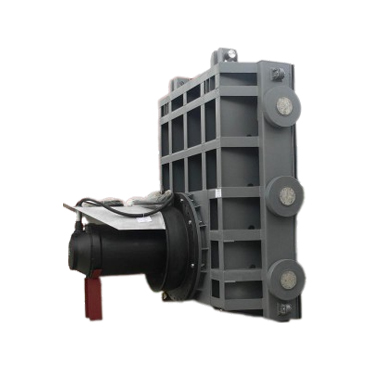

Gate pump
Product use
· Improvement of drainage capacity of existing drainage pumping station
· Used as an integrated sluice pump
Structure and Features
· Sluice-integrated pump does not require separate installation space
· Propeller impeller application, high efficiency achieved
· Attachment of cavitation prevention device for low water level operation
· Minimize starting power and reduce
· Propeller impeller application, high efficiency achieved
· Attachment of cavitation prevention device for low water level operation
· Minimize starting power and reduce
Motor specifications
· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 30~375kW
· Service Factor: 1.15
· Built-in winding temperature, seal leakage detection, bearing temperature sen
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 30~375kW
· Service Factor: 1.15
· Built-in winding temperature, seal leakage detection, bearing temperature sen
Standard specifications
| Caliber (mm) |
Flow rate (m³/min) |
Yangjeong (m) |
Power (kw) |
Number of poles (Pole) |
|---|---|---|---|---|
| 400 | 20 | 3 | 22 | 8 |
| 500 | 30 | 3 | 30 | 10 |
| 600 | 50 | 3 | 45 | 12 |
| 700 | 65 | 3 | 55 | 14 |
| 800 | 90 | 3.5 | 75 | 16 |
| 900 | 100 | 3.5 | 110 | 20 |
| 1000 | 125 | 3.5 | 110 | 20 |
| 1100 | 140 | 3.5 | 132 | 22 |
| 1200 | 160 | 4 | 150 | 24 |
| 1350 | 220 | 3.5 | 190 | 28 |
