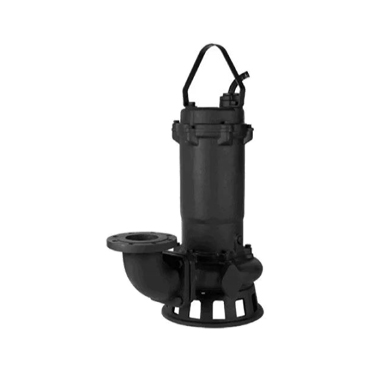

Sewage pump

Product use
· For transporting sewage from sewage treatment plants
· For sewage drainage from various buildings
· Circulation pump for car washing equipment
· For sewage drainage in underground spaces such as subways
· For wastewater drainage at i
List

Structure and Features

· Realization of relatively high head by adopting a 2-pole electric motor
· Simple structure, easy to handle
· Semi open impeller adopted, excellent load adaptability
· Impeller structure that minimizes clogging with foreign substances

Motor specifications

· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 1.5~30kW
· Service Factor: 1.10
· Winding temperature detection sensor installed as standard

Standard specifications

Caliber (mm)	Format Model	Output Output	Yangjeong Head(m)	Amount of positive fluid Q(m³/min)	Rotations R.P.M	Weight Kg	External dimensions
Caliber (mm)	Format Model	Output Output	Yangjeong Head(m)	Amount of positive fluid Q(m³/min)	Rotations R.P.M	Weight Kg	A	B	C	D	E	F
50	50SWO0.75 T	0.75	10	0.16	3600	30	370	230	180	200	150	405
50	50SWO1.5 T	1.5	15	0.25		33	370	265	180	200	170	405
80	80SWO2.2 T	2.2	20	0.3		51	470	265	245	215	170	445
	80SWO3.7 T	3.7	20	0.5		56	470	276	245	228	180	465
	80SNWO5.5 T	5.5	25	0.6		75	470	276	245	228	180	575
100	100SWO7.5 T	7.5	30	0.8		124	750	347	330	300	230	830
	100SWO11 T	11	35	1.0		140	750	347	330	300	230	895
	100SWO15 T	15	40	1.2		146	750	437	330	300	230	895
150	150SWO19 T	19	30	2.0		400	1120	432	602	650	475	1340
	150SWO22 T	22	35	2.2		430	1120	435	602	650	475	1340
	150SWO30 T	30	45	2.5		460	1120	435	602	650	475	1340
	150SWO37 T	37	50	2.5		480	1120	435	602	650	475	1340
