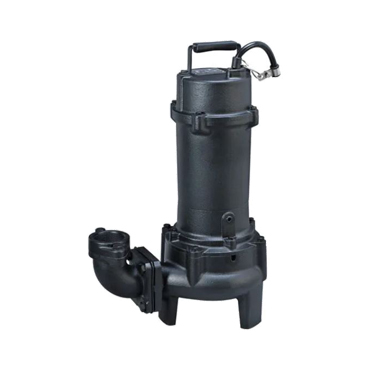

SMSV
Vortex pump
Product use
· Transfer of raw water to sewage and waste treatment plants
· Pumps at relay pumping stations with a lot of rural waste
· For supply of raw seawater to fish farms
· For draining wastewater containing a lot of impurities
Structure and Features
· Adoption of vortex impeller, blocking the source of clogging
· Securing durability by installing temperature sensors and water leakage sensors to determine the cause of failure in advance
· Excellent load adaptability with various models emplo
· Securing durability by installing temperature sensors and water leakage sensors to determine the cause of failure in advance
· Excellent load adaptability with various models emplo
Motor specifications
· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 1.5~37kW
· Service Factor: 1.10
· Winding temperature detection sensor installed as standard
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 1.5~37kW
· Service Factor: 1.10
· Winding temperature detection sensor installed as standard
Standard specifications
| Caliber (mm) |
Format Model |
Output Output |
Jeon Yang-jeong (m³/min) |
Discharge amount Q(m³/min) |
Rotations R.P.M |
Weight Kg |
External dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | H | L | |||||||
| 80 | 80SSV2.2 4T | 2.2 | 9 | 0.5 | 1750 | 56 | 530 | 290 | 280 | 230 | 600 | 230 |
| 80SSV3.7 4T | 3.7 | 10 | 0.8 | 64 | 530 | 290 | 280 | 230 | 370 | 230 | ||
| 80SSV5.5 4T | 5.5 | 10 | 1.2 | 121 | 620 | 350 | 350 | 290 | 825 | 260 | ||
| 100 | 100SSV7.5 4T | 7.5 | 14 | 1.2 | 133 | 620 | 350 | 350 | 290 | 825 | 260 | |
| 100SSV11 4T | 11 | 16 | 1.5 | 171 | 620 | 350 | 350 | 290 | 940 | 270 | ||
| 100SSV15 4T | 15 | 18 | 1.8 | 200 | 620 | 350 | 350 | 290 | 940 | 270 | ||
