Large capacity drainage pump > Submersible Pump Product List

SMSE

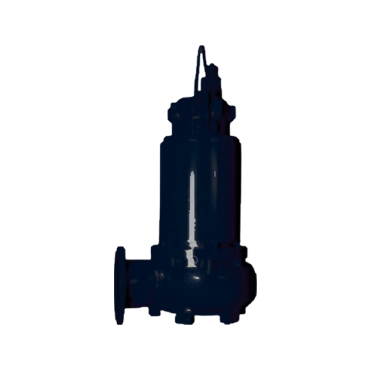

Large capacity drainage pump

Product use
· Transfer of raw water to sewage and waste treatment plants
· Underpass drainage
· For small-scale rainwater pumps in the city
· For large-scale raw water intake from rivers
List

Structure and Features

· Heavy Duty Type
· Application of 4-pole, 6-pole, and 8-pole motors, ensuring high efficiency with high torque
· Use of patented automatic detachment device, achieving zero water leakage

Motor specifications

· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise), class H (optional)
· Output range: 1.5~210kW
· Service Factor: 1.10
· Winding temperature detection and seal leakage detection sensors are install

Standard specifications

Caliber (mm)	Format Model	Output Output	Yangjeong Head(m)	Amount of positive fluid Q(m³/min)	Rotations R.P.M	Weight Kg	External dimensions
Caliber (mm)	Format Model	Output Output	Yangjeong Head(m)	Amount of positive fluid Q(m³/min)	Rotations R.P.M	Weight Kg	A	B	C	D	F	G
50	50SSE0.75 4T	0.75	8	0.2	1750	38	360	260	185	210	105	400
80	80SSE1.5 4T	1.5	8	0.5	1750	42	490	280	225	230	185	400
	80SSE2.2 4T	2.2	10	0.6	1750	89	630	340	355	330	300	550
	80SSE3.7 4T	3.7	15	0.5	1750	100	715	405	410	340	300	550
	80SSE5.5 4T	5.5	16	0.6	1750	180	715	405	410	340	300	600
100	100SSE3.7 4T	3.7	10	1	1750	124	640	355	360	300	500	770
	100SSE5.5 4T	5.5	14	1	1750	145	640	355	360	300	500	790
	100SSE7.5 4T	7.5	18	1	1750	208	730	405	440	380	540	830
150	150SSE7.5 4T	7.5	9	2.5	1750	375	980	540	580	500	640	1070
	150SSE11 4T	11	15	2.5	1750	392	980	540	580	500	640	1180
	150SSE15 4T	15	20	2.5	1750	402	980	540	580	500	640	1180
	150SSE22 4T	22	25	2.5	1750	500	990	535	570	540	640	1330
200	200SSE11 4T	11	10	4.5	1750	460	1050	590	580	540	640	1070
	200SSE15 4T	15	14	4.5	1750	480	1050	590	580	540	640	1200
	200SSE22 4T	22	18	4.5	1750	543	990	535	570	540	640	1370
	200SSE30 4T	30	22	4.5	1750	563	990	535	570	540	640	1370
	200SSE37 4T	37	28	4.5	1750	810	1150	630	720	610	850	1500
	200SSE55 4T	55	40	4.5	1750	840	1150	360	720	610	850	1500
250	250SSE11 6T	11	6	7	1150	550	1350	785	640	630	800	1160
	250SSE15 6T	15	9	7	1150	570	1350	785	640	630	800	1160
	250SSE22 6T	22	11.5	7	1150	650	650	785	640	630	800	1270
	250SSE30 4T	30	13	7	1750	570	670	720	600	630	850	1370
	250SSE37 4T	37	16	7	1750	810	810	720	600	630	850	1370
	250SSE45 4T	45	26	6	1750	820	820	720	600	630	850	1370
	250SSE55 4T	55	30	7	1750	850	850	770	730	820	1260	1860
	250SSE75 4T	75	40	7	1750	950	950	770	730	820	1260	1860
300	300SSE15 6T	15	6.5	10	1150	600	600	785	640	630	700	1160
	300SSE22 6T	22	9	10	1150	700	700	800	750	700	960	1490
	300SSE30 6T	30	10	10.5	1150	750	750	800	750	700	960	1490
	300SSE37 6T	37	15	10	1150	800	800	800	750	700	960	1510
	300SSE45 6T	45	18	10	1150	830	830	800	750	700	960	1510
	300SSE55 6T	55	21	10	1150	910	910	800	750	820	1260	1860
	300SSE75 4T	75	31	10	1750	950	950	800	750	820	1260	1860
400	400SSE22 14T	22	4	20	500	1550	1790	1040	910	1200	1000	1930
	400SSE37 10T	37	7	20	700	1800	1790	1040	910	1200	1000	1930
	400SSE45 8T	45	9	20	875	1950	1790	1040	910	1007	1000	1930
	400SSE55 8T	55	11	20	875	2100	1790	1040	910	1007	1000	1930
	400SSE75 6T	75	15	20	1165	2150	1790	1040	910	1007	1000	1930
500	500SSE37 14T	37	5	30	500	1800	2100	960	1600	1260	990	1940
	500SSE55 12T	55	7.5	30	585	2000	2100	960	1600	1260	990	1940
	500SSE75 10T	75	10	30	700	2400	2100	960	1600	1260	990	1940
