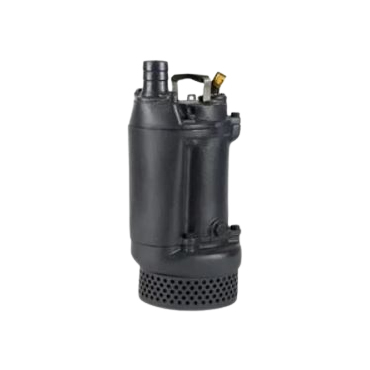

SMDO
Construction pump

Product use
· For drainage at civil engineering and construction sites
· Subway construction, tunnel construction, groundwater drainage
· For drainage of leachate from communication ports
· All-purpose pump in industrial sites
· Pumps for fountain
List

Structure and Features

· Simple structure and easy to move
· Excellent field adaptability by connecting hoses using couplings
· Semi open impeller adopted, excellent load adaptability
· Built-in double mechanical seal and motor protection device
· Realizatio

Motor specifications

· Dry underwater induction motor (IP68)
· Class F insulation (class B temperature rise)
· Output range: 1.5~110kW
· Service Factor: 1.10
· Winding temperature detection sensor installed as standard

Standard specifications

Caliber (mm)	Format Model	Output Output(kw)	Jeon Yang-jeong (m)	Discharge amount (m³/min)	Weight Kg	External dimensions
Caliber (mm)	Format Model	Output Output(kw)	Jeon Yang-jeong (m)	Discharge amount (m³/min)	Weight Kg	A	B	C	F	H	L
50	50SDO0.75 T	0.75	10	0.16	30	195	85	180	415	340	95
	50SDO1.5 T	1.5	15	0.25	45	235	80	215	535	490	150
	50SDO2.2 T	2.2	20	0.3	50	235	80	215	535	515	150
80	80SDO1.5 T	1.5	8	0.5	45	235	80	215	535	490	160
	80SDO2.2 T	2.2	10	0.6	50	235	80	215	535	515	150
	80SDO3.7 T	3.7	20	0.5	70	285	105	250	630	515	150
	80SDO5.5 T	5.5	25	0.6	83	285	105	250	630	630	180
100	100SDO3.7 T	3.7	10	1	70	285	105	250	645	580	180
	100SDO5.5 T	5.5	15	1	83	285	105	250	695	630	180
	100SDO7.5 T	7.5	30	0.8	150	360	130	325	830	815	250
	100SDO11 T	11	35	1	177	360	130	325	780	855	250
	100SDO15 T	15	40	1.2	180	360	130	325	870	855	250
150	150SDO7.5 T	7.5	15	1.6	150	360	130	325	890	815	250
	150SDO11 T	11	20	1.7	177	360	130	325	930	855	250
	150SDO15 T	15	20	2.5	180	360	130	325	930	855	250
